Trailer-mounted lattice tower that raises up to 200 kg of optronics, radar or vehicle radios to 45 m to improve signal gain.
Overview
Trailer-mounted lattice tower that raises up to 200 kg of optronics, radar or vehicle radios to 45 m to improve signal gain. Multi-stage linkage with automatic folding, expanding support structure and automatic cable tightening gives one-key unfolding and retracting in 15 minutes or less; the structure works normally in force-8 wind (20 m/s) and withstands force-10 (30 m/s).
The Mobile Tower System is organized for use in command posts, where the elevator can be used to carry optronics, radar and vehicle radios to improve signal gain. The design is high-lift and high-load - maximum lifting height of the tower is up to 45 m and maximum load up to 200 kg, with height and load also customizable.
Rollout and recovery are rapid: the antenna lifting tower adopts a multi-stage linkage design, automatic folding and expanding support structure and automatic cable tightening design, supporting one-key unfolding and retracting with unfolding/retracting time not more than 15 minutes. The design is highly reliable - structural strength design simulation shows level 8 wind (wind speed 20 m/s) can be used normally and level 10 wind (wind speed 30 m/s) can be withstood.

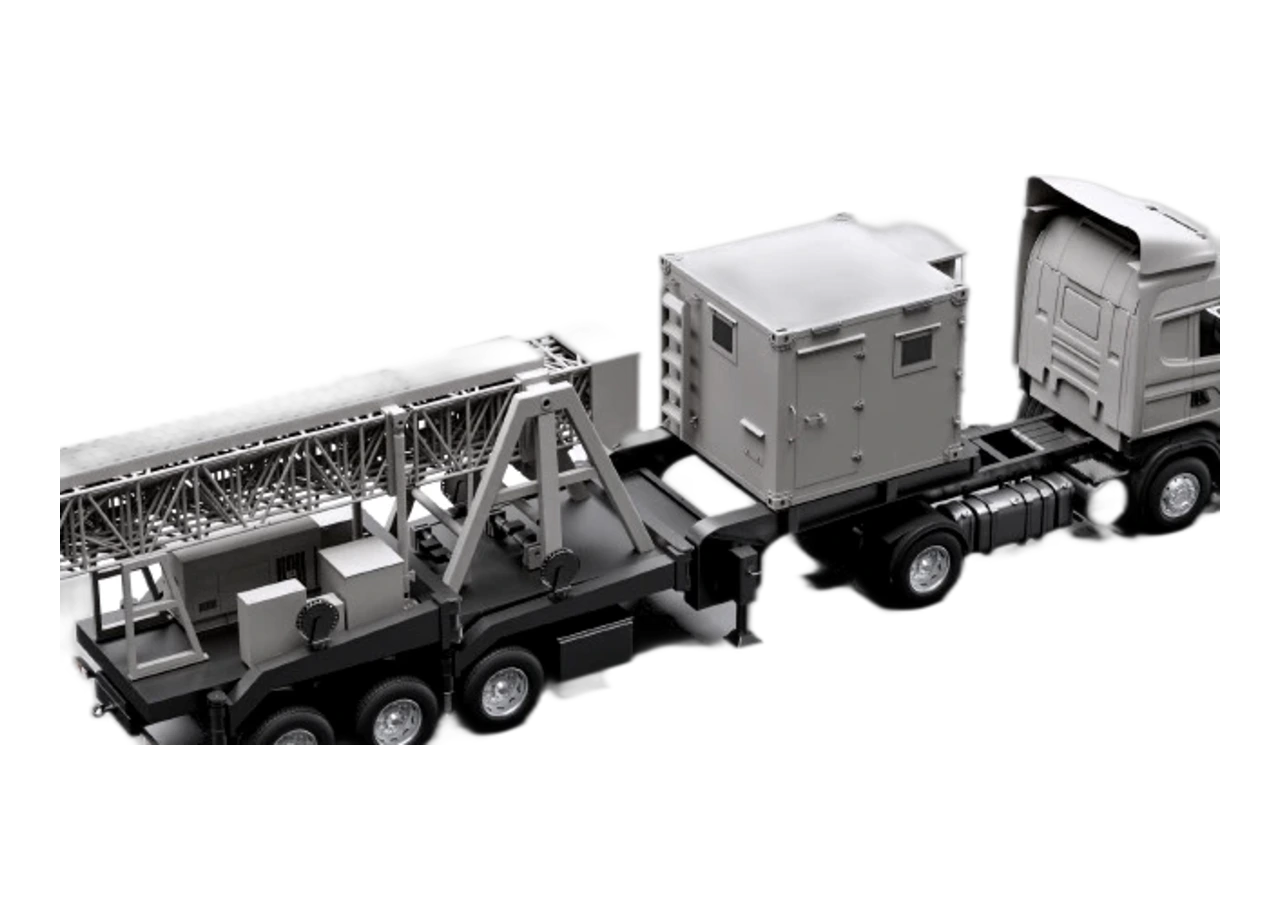

Adoption of standardized traction pins means the trailer can be adapted to a wide range of tractor-trailers. The trailer carries outriggers, the tower vertical structure, a hydraulic system, a control system, a cable retractor, the tower assembly, planks and a collapse prevention device, together with an equipment shelter containing air conditioning, cabinet, seats and a work station.
Give a command post a reusable, rapidly erected high mast so antennas, radar or EO sensors gain the height they need without permanent construction.
Technical · 12 parameters
Specifications
Key features
- High-lift, high-load design — Maximum lifting height up to 45 m and maximum load up to 200 kg; height and load customizable.
- Rapid rollout and recovery
- Highly reliable design — Structural strength simulation - level 8 wind (20 m/s) normal use, level 10 wind (30 m/s) withstood.
- Flexibly adapted to tractor-trailers — Standardized traction pins adapt to a wide range of tractor-trailers.
Where it operates
- Antenna elevation — Raising vehicle radios and antennas to 45 m to improve signal gain.
- Sensor elevation — Carrying optronics or radar payloads at height for extended horizon.
- Rapid command post setup — One-key unfolding and retracting within 15 minutes on arrival.
