Professional Radios
Digital Mobile Radio
DMR-standard mobile radio for in-vehicle or desktop use with 1024 channels, up to 50 W transmit power, colour display, remote…
Overview

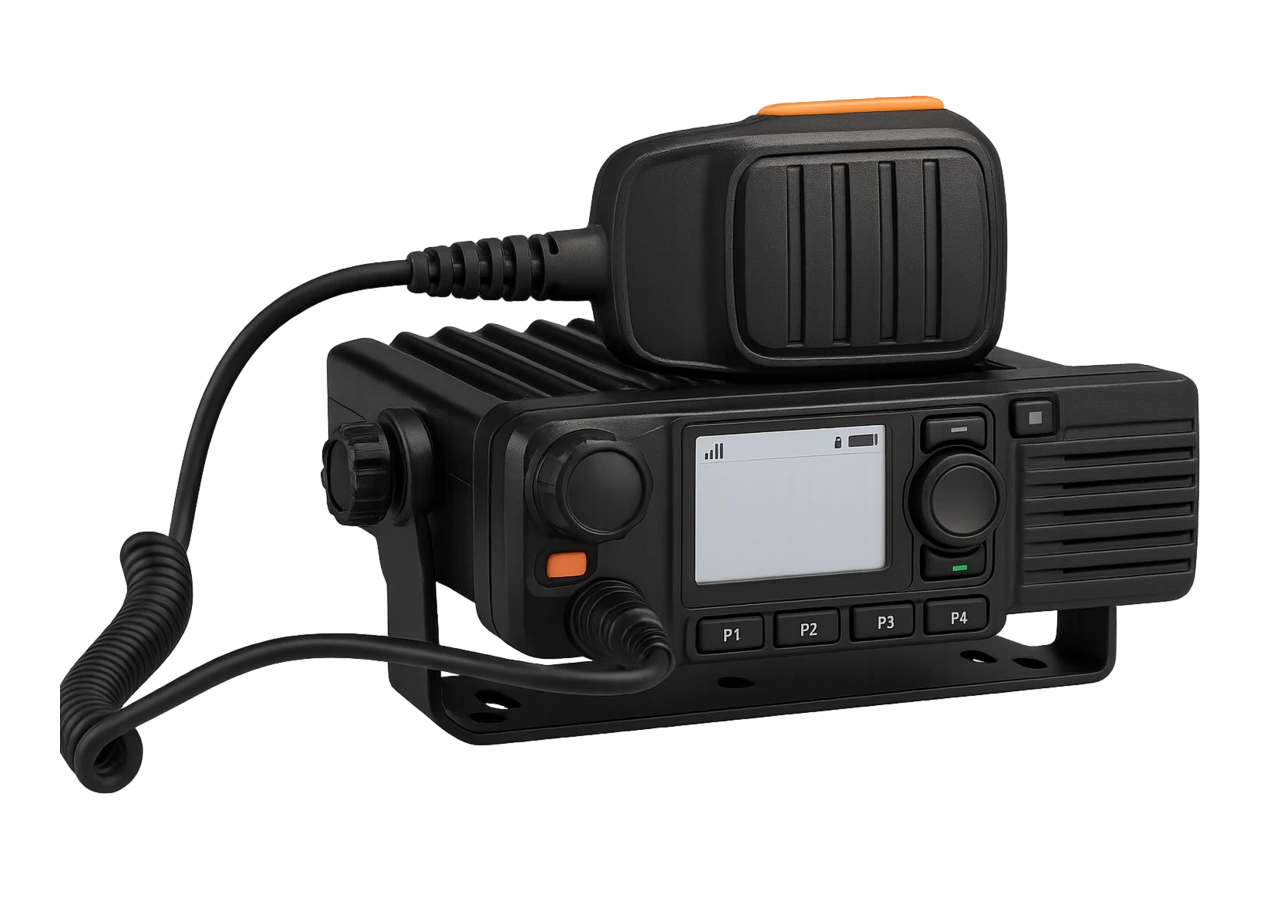

DMR-standard mobile radio for in-vehicle or desktop use with 1024 channels, up to 50 W transmit power, colour display, remote control head, analog+digital dual mode, optional full duplex call and single-frequency repeater mode, GPS for AVL, MIL-STD-810 C/D/E/F/G and IP54. Technically identical to the mobile radio brochure.
Built to the DMR standard, the radio is presented as the ideal solution for in-vehicle or desktop communication, combining ergonomic design, all-round digital functions and high quality. The large colour display remains clear under strong sunlight and seven ergonomic programmable keys speed up operation.
A remote control head kit lets the console and main unit sit at separate locations. The radio operates in analog and digital modes for a smooth migration path, carries DTMF, 5-tone, HDC1200 and 2-tone analog signalling and supports basic and advanced encryption for voice and data.
Optional Single Frequency Repeater mode receives on one timeslot and forwards on the other to extend DMO range; optional Full Duplex Call reaches PD80X, the radio, telephones or cell phones in DMO or RMO mode. Telemetry gives real-time remote monitoring and control, the positioning chipset feeds AVL applications, roaming is automatic across IP Multi-site Connect sites, and a back-to-back cable between two radios bridges analog and digital systems cross-band.
Anchor the vehicle and desk end of a DMR fleet with high transmit power, loud audio and the interfaces needed to bridge systems and feed fleet-management applications.
Technical · 22 parameters
Specifications
Key features
- User friendly — Large colour display readable in sunlight, large keyboard, seven programmable keys.
- Reliable & durable — MIL-STD-810 C/D/E/F/G and IP54.
- Remote control head — Control console and main unit installable at separate locations.
- Full duplex call (optional) — Full duplex with PD80X, the radio, telephones or cell phones in DMO or RMO mode.
- Telemetry — Real-time remote monitoring and control of devices.
- Positioning — Uploads location to AVL applications in real time.
- Enlarge communication range — 50 W transmit power and higher RX sensitivity.
- Smooth migration — Analog and digital operation for seamless transition.
- Single frequency repeater mode (optional) — Extends communication range in DMO mode.
- Analog signaling — DTMF, 5-tone, HDC1200 and 2-tone signalling.
- Secure communication — Basic and advanced encryption for voice and data.
- Roaming — Automatic roaming among all sites in an IP Multi-site Connect system.
Where it operates
- In-vehicle mobile station — Dashboard-mounted radio with palm microphone, optional remote control head.
- Desktop base station — Desk use with external/cabinet power supply and external speaker.
- Single frequency repeater (DMO range extension) — One slot receives, the other forwards, extending communication range in DMO.
- AVL / fleet tracking — Positioning chipset uploads location to AVL applications in real time.
- Cross-system bridge — Back-to-back data cable between two radios interconnects different systems.
