Broadband Communication Vehicle
Team-level communication node built around a tethered UAV that lifts a DMR rotary station, multi-band radio or other payload…
Overview
Team-level communication node built around a tethered UAV that lifts a DMR rotary station, multi-band radio or other payload up to 150 m to create an aerial relay. Carries up to 30 kg, resists force-6 wind (14 m/s), and combines with a 10 m electronic mast, Starlink, multi-band radio and DMR repeater in a centrally controlled, one-key deploy shelter.
The Broadband Communication Vehicle is allocated to the use of the team vehicle; the tethered UAV can be equipped with the vehicle radio or a rotary station to build a communication node. Communication module air support is the core idea - the maximum load of the tethering UAV platform is 30 kg, the maximum lift-off height is not less than 150 m, it can resist force-6 wind (wind speed 14 m/s), and it can carry the respective DMR rotary station, multi-band radio and other loads, providing reliable long-distance relay communication guarantee.
The integrated communications network architecture fuses multi-band radio, Starlink, DMR, wired and other means of communication to build a comprehensive network with interconnection of organic/wireless, wide/narrow-band intermingling, and remote/proximity complementary to each other, which can effectively support the diversified communication security needs of demanding field field teams. Centralized control of electromechanical equipment covers the lifting and homing mechanism of the UAV, the electric inverting mechanism and the electric levelling system, realising one-key unfolding and one-key retracting of the electric mechanism.

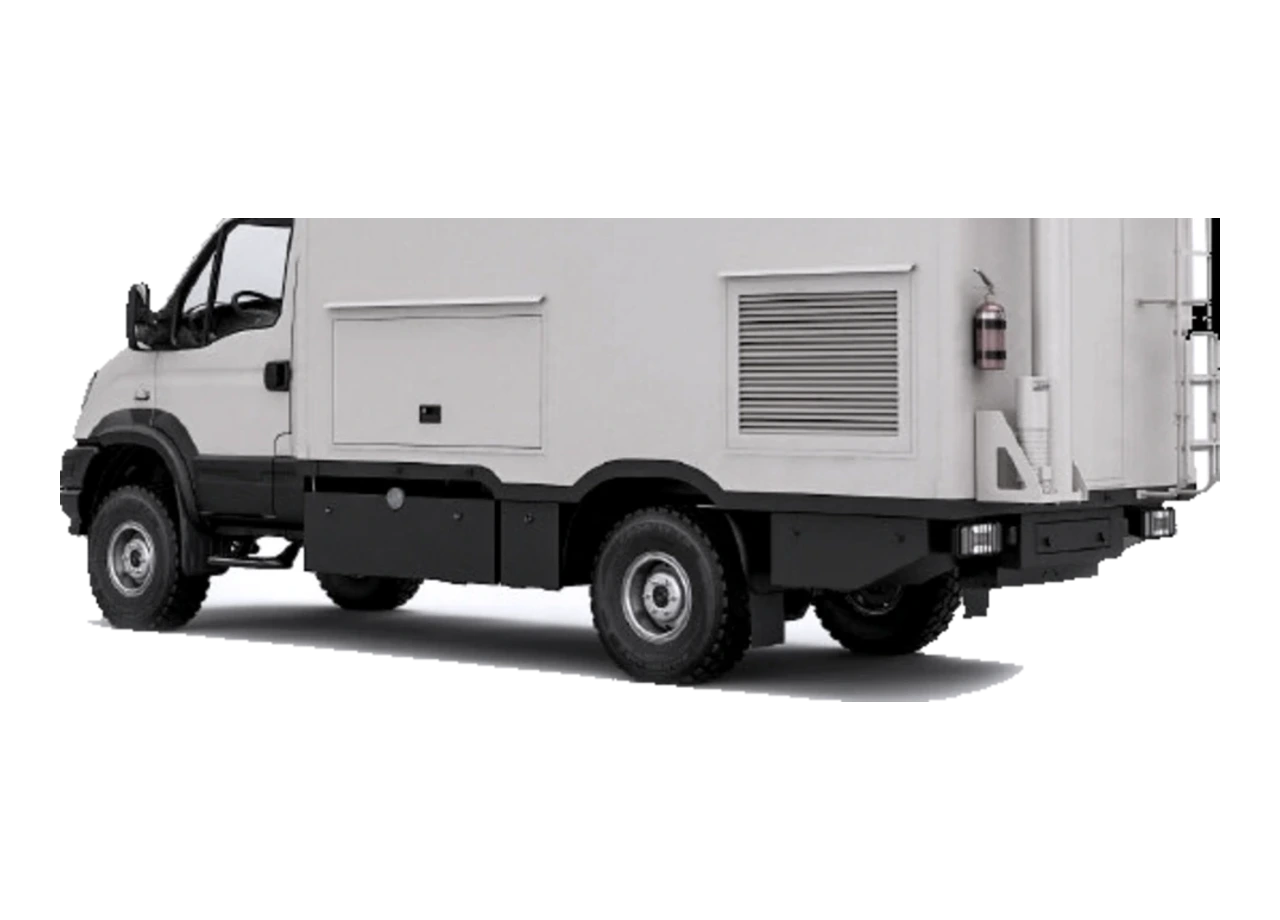

The platform is highly manoeuvrable and rapidly expanding - a lightweight, high-mobility off-road chassis with a maximum speed of 120 km/h is selected, and 10 km/h in the lift-off state of the UAV, combined with the centralized control design of the on-board electromechanical equipment, to realise the system's rapid mobility and highly efficient rollout and recovery.
Restore or extend communications coverage over broken terrain by putting the radio node in the air on a tether, without needing terrain-dominant ground positions or fixed infrastructure.
